Koyo MJ-20161
(BRAND)：KOYO
(Availability)：In Stock
Specifications

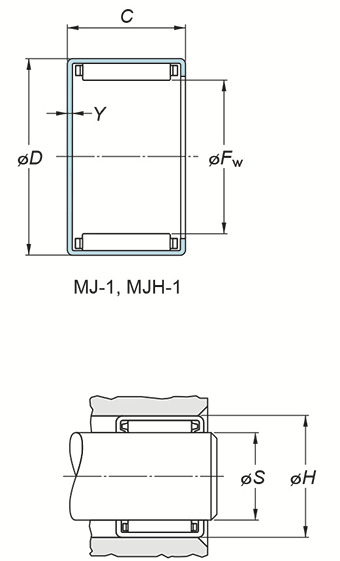

(Boundary dimensions ...etc)
Fw
31.750 mm
D
38.100 mm
C
25.40 mm
Y(max)
1.02 mm
Basic load ratings : Cr
28.82 kN
Basic load ratings : C0r
56.49 kN
Fatigue load limit : Cu
8.70 kN
Limiting speeds(Grease lub.)
6600 min-1
Limiting speeds(Oil lub.)
10000 min-1
Mounting inner ring
IR-1616(1)
Mounting dimensions
Refer.
(Refer.)Mass
0.051 kg
