Koyo MJ-24121
(BRAND)：KOYO
(Availability)：In Stock
Specifications

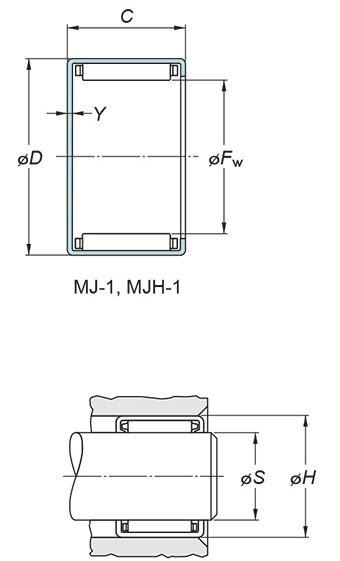

(Boundary dimensions ...etc)
Fw
38.100 mm
D
47.625 mm
C
19.05 mm
Y(max)
1.27 mm
Basic load ratings : Cr
29.89 kN
Basic load ratings : C0r
47.15 kN
Fatigue load limit : Cu
7.40 kN
Limiting speeds(Grease lub.)
5600 min-1
Limiting speeds(Oil lub.)
8600 min-1
Mounting inner ring
IR-1916
Mounting dimensions
Refer.
(Refer.)Mass
0.094 kg
