Koyo MJ-24161
(BRAND)：KOYO
(Availability)：In Stock
Specifications

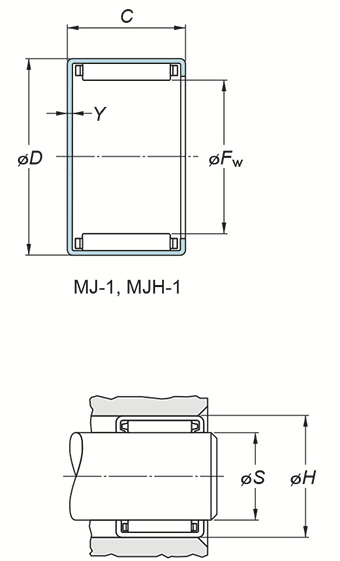

(Boundary dimensions ...etc)
Fw
38.100 mm
D
47.625 mm
C
25.40 mm
Y(max)
1.27 mm
Basic load ratings : Cr
39.32 kN
Basic load ratings : C0r
66.72 kN
Fatigue load limit : Cu
10.4 kN
Limiting speeds(Grease lub.)
5600 min-1
Limiting speeds(Oil lub.)
8600 min-1
Mounting inner ring
IR-1916
Mounting dimensions
Refer.
(Refer.)Mass
0.094 kg
