Koyo MJ-681
(BRAND)：KOYO
(Availability)：In Stock
Specifications

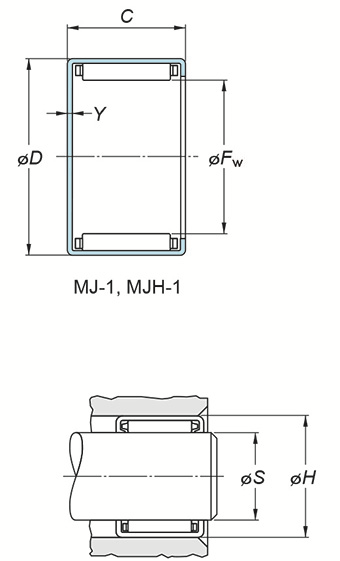

(Boundary dimensions ...etc)
Fw
9.525 mm
D
14.288 mm
C
12.70 mm
Y(max)
1.02 mm
Basic load ratings : Cr
5.22 kN
Basic load ratings : C0r
5.72 kN
Fatigue load limit : Cu
0.860 kN
Limiting speeds(Grease lub.)
18000 min-1
Limiting speeds(Oil lub.)
27000 min-1
Mounting inner ring
IRA-3
Mounting dimensions
Refer.
(Refer.)Mass
0.006 kg
