Koyo MJH-13121
(BRAND)：KOYO
(Availability)：In Stock

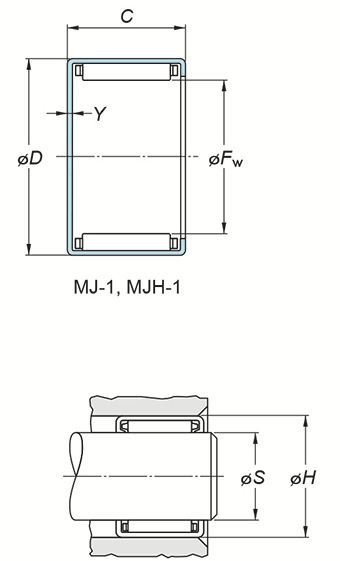

Specifications
(Boundary dimensions ...etc)
Fw
20.638 mm
D
28.575 mm
C
19.05 mm
Y(max)
1.27 mm
Basic load ratings : Cr
18.77 kN
Basic load ratings : C0r
24.50 kN
Fatigue load limit : Cu
3.85 kN
Limiting speeds(Grease lub.)
11000 min-1
Limiting speeds(Oil lub.)
16000 min-1
Mounting inner ring
Mounting dimensions
Refer.
(Refer.)Mass
0.034 kg
