Koyo MJH-16121
(BRAND)：KOYO
(Availability)：In Stock
Specifications

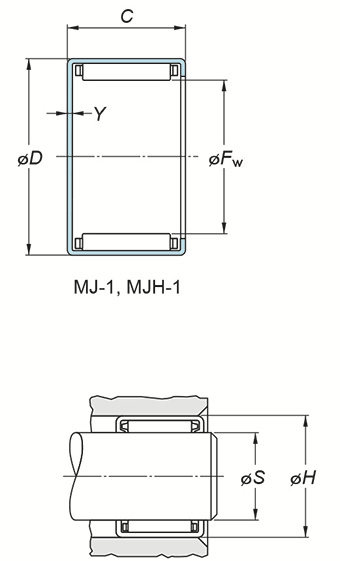

(Boundary dimensions ...etc)
Fw
25.400 mm
D
33.338 mm
C
19.05 mm
Y(max)
1.27 mm
Basic load ratings : Cr
20.68 kN
Basic load ratings : C0r
29.58 kN
Fatigue load limit : Cu
4.60 kN
Limiting speeds(Grease lub.)
8500 min-1
Limiting speeds(Oil lub.)
13000 min-1
Mounting inner ring
IR-1212
Mounting dimensions
Refer.
(Refer.)Mass
0.040 kg
