Koyo MLF3008
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

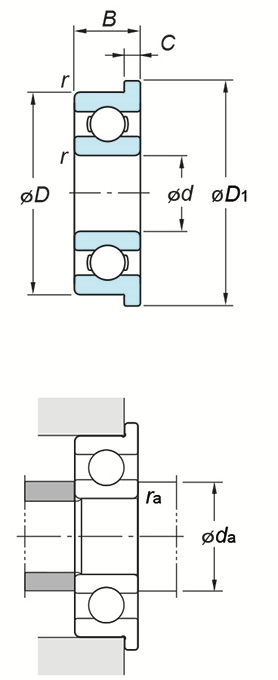

(Boundary dimensions ...etc)
d
3 mm
D
8 mm
B
2.5 mm
r(min.)
0.1 mm
Basic load ratings : Cr
0.49 kN
Basic load ratings : C0r
0.14 kN
Fatigue load limit : Cu
0.004 kN
factor : f0
13.4
Limiting speeds(Grease lub.)
61000 min-1
Limiting speeds(Oil lub.)
72000 min-1
Dimensions of flange D1
9.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
4.0 mm
ra(max.)
0.1 mm
Refer.
(Refer.)Mass
0.6 g
