Koyo MLF4007
(BRAND)：KOYO
(Availability)：In Stock
Specifications

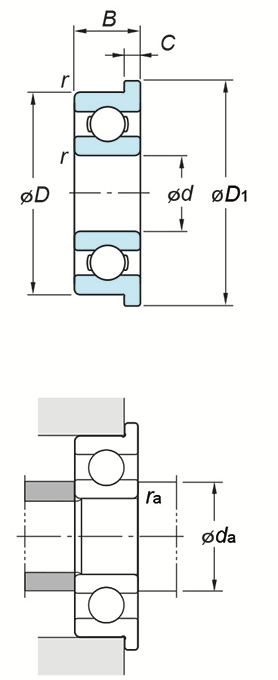

(Boundary dimensions ...etc)
d
4 mm
D
7 mm
B
2 mm
r(min.)
0.08 mm
Basic load ratings : Cr
0.32 kN
Basic load ratings : C0r
0.11 kN
Fatigue load limit : Cu
0.003 kN
factor : f0
15.1
Limiting speeds(Grease lub.)
63000 min-1
Limiting speeds(Oil lub.)
75000 min-1
Dimensions of flange D1
8.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
4.6 mm
ra(max.)
0.05 mm
Refer.
(Refer.)Mass
0.3 g
