Koyo MLF5009
(BRAND)：KOYO
(Availability)：In Stock
Specifications

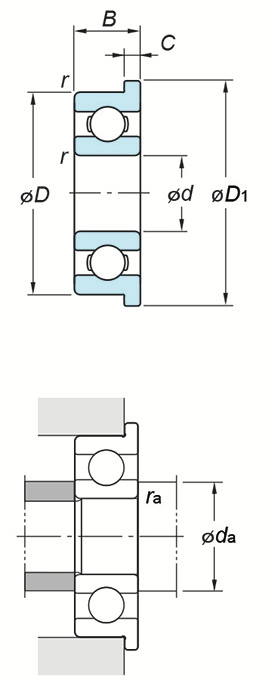

(Boundary dimensions ...etc)
d
5 mm
D
9 mm
B
2.5 mm
r(min.)
0.1 mm
Basic load ratings : Cr
0.54 kN
Basic load ratings : C0r
0.17 kN
Fatigue load limit : Cu
0.004 kN
factor : f0
14.6
Limiting speeds(Grease lub.)
57000 min-1
Limiting speeds(Oil lub.)
67000 min-1
Dimensions of flange D1
10.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
5.8 mm
ra(max.)
0.08 mm
Refer.
(Refer.)Mass
0.6 g
