Koyo MLF5010
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

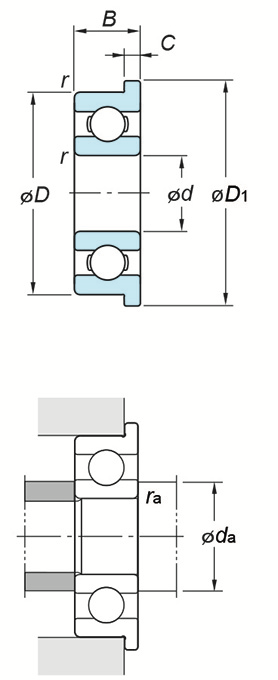

(Boundary dimensions ...etc)
d
5 mm
D
10 mm
B
3 mm
r(min.)
0.1 mm
Basic load ratings : Cr
0.54 kN
Basic load ratings : C0r
0.17 kN
Fatigue load limit : Cu
0.005 kN
factor : f0
14.8
Limiting speeds(Grease lub.)
57000 min-1
Limiting speeds(Oil lub.)
67000 min-1
Dimensions of flange D1
11.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
5.8 mm
ra(max.)
0.1 mm
Refer.
(Refer.)Mass
1.0 g
