Koyo MLF6012
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

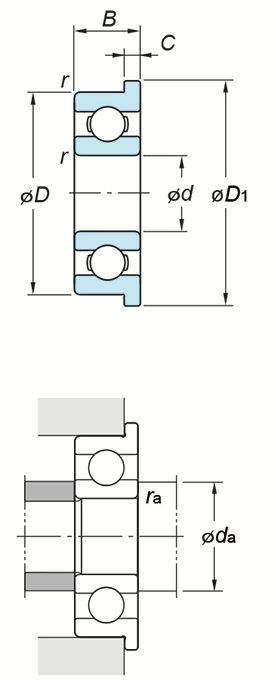

(Boundary dimensions ...etc)
d
6 mm
D
12 mm
B
3 mm
r(min.)
0.15 mm
Basic load ratings : Cr
0.89 kN
Basic load ratings : C0r
0.29 kN
Fatigue load limit : Cu
0.008 kN
factor : f0
14.5
Limiting speeds(Grease lub.)
49000 min-1
Limiting speeds(Oil lub.)
59000 min-1
Dimensions of flange D1
13.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
7.2 mm
ra(max.)
0.1 mm
Refer.
(Refer.)Mass
1.4 g
