Koyo MLF7011
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

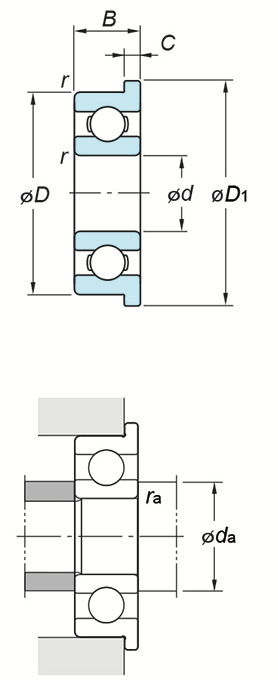

(Boundary dimensions ...etc)
d
7 mm
D
11 mm
B
2.5 mm
r(min.)
0.1 mm
Basic load ratings : Cr
0.57 kN
Basic load ratings : C0r
0.20 kN
Fatigue load limit : Cu
0.005 kN
factor : f0
15.6
Limiting speeds(Grease lub.)
49000 min-1
Limiting speeds(Oil lub.)
59000 min-1
Dimensions of flange D1
12.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
7.8 mm
ra(max.)
0.08 mm
Refer.
(Refer.)Mass
0.8 g
