Koyo MLF8012
(BRAND)：KOYO
(Availability)：In Stock
Specifications

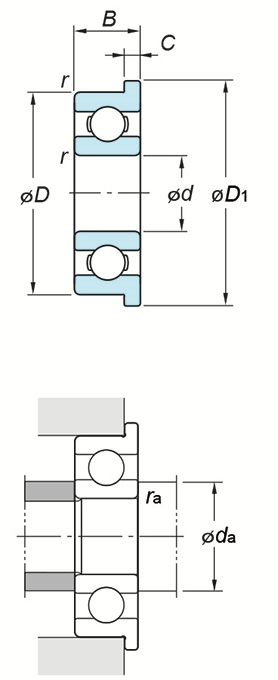

(Boundary dimensions ...etc)
d
8 mm
D
12 mm
B
2.5 mm
r(min.)
0.1 mm
Basic load ratings : Cr
0.68 kN
Basic load ratings : C0r
0.27 kN
Fatigue load limit : Cu
0.007 kN
factor : f0
15.9
Limiting speeds(Grease lub.)
47000 min-1
Limiting speeds(Oil lub.)
55000 min-1
Dimensions of flange D1
13.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
8.8 mm
ra(max.)
0.08 mm
Refer.
(Refer.)Mass
0.9 g
