Koyo N208
(BRAND)：KOYO
(Availability)：In Stock
Specifications

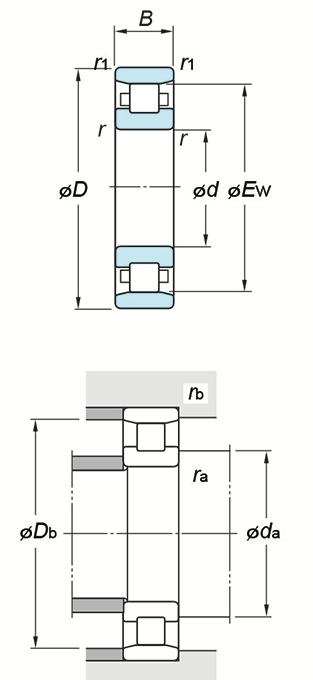

(Boundary dimensions ...etc)
d
40 mm
D
80 mm
B
18 mm
r(min.)
1.1 mm
r1(min.)
1.1 mm
Fw
- mm
Ew
70 mm
Basic load ratings : Cr
54.7 kN
Basic load ratings : C0r
42.9 kN
Fatigue load limit : Cu
6.15 kN
Limiting speeds(Grease lub.)
8300 min-1
Limiting speeds(Oil lub.)
10000 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
46.5 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
73.5 mm
Db(min.)
72 mm
ra(max.)
1 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
0.366 kg
