Koyo N215
(BRAND)：KOYO
(Availability)：In Stock
Specifications

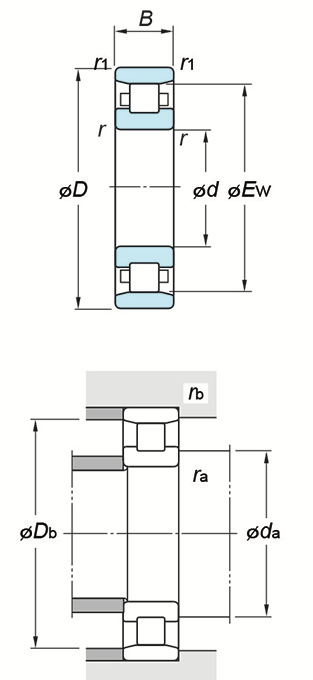

(Boundary dimensions ...etc)
d
75 mm
D
130 mm
B
25 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Fw
- mm
Ew
116.5 mm
Basic load ratings : Cr
121 kN
Basic load ratings : C0r
118 kN
Fatigue load limit : Cu
16.1 kN
Limiting speeds(Grease lub.)
4800 min-1
Limiting speeds(Oil lub.)
5800 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
83 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
122 mm
Db(min.)
120 mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
1.24 kg
