Koyo N216
(BRAND)：KOYO
(Availability)：In Stock

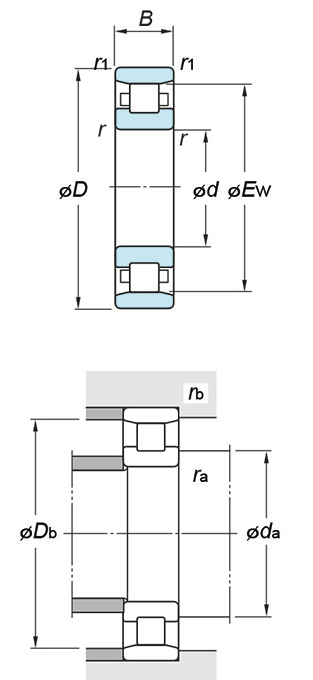

Specifications
(Boundary dimensions ...etc)
d
80 mm
D
140 mm
B
26 mm
r(min.)
2 mm
r1(min.)
2 mm
Fw
- mm
Ew
125.3 mm
Basic load ratings : Cr
133 kN
Basic load ratings : C0r
122 kN
Fatigue load limit : Cu
16.2 kN
Limiting speeds(Grease lub.)
4500 min-1
Limiting speeds(Oil lub.)
5400 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
89 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
131 mm
Db(min.)
128 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
1.50 kg
