Koyo N309
(BRAND)：KOYO
(Availability)：In Stock
Specifications

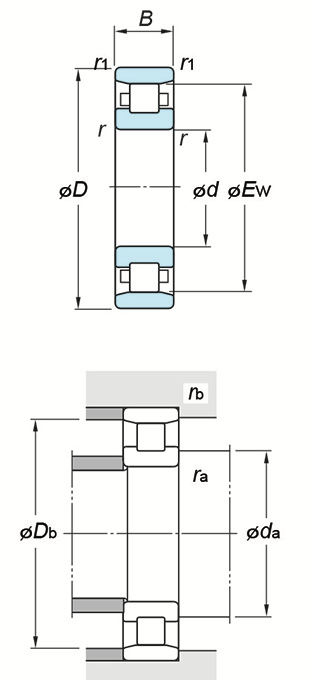

(Boundary dimensions ...etc)
d
45 mm
D
100 mm
B
25 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Fw
- mm
Ew
86.5 mm
Basic load ratings : Cr
98.5 kN
Basic load ratings : C0r
77.5 kN
Fatigue load limit : Cu
11.3 kN
Limiting speeds(Grease lub.)
6200 min-1
Limiting speeds(Oil lub.)
8300 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
53 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
92 mm
Db(min.)
89 mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
0.853 kg
