Koyo N310
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

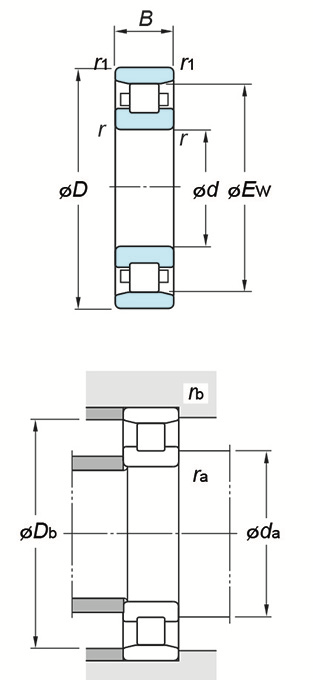

(Boundary dimensions ...etc)
d
50 mm
D
110 mm
B
27 mm
r(min.)
2 mm
r1(min.)
2 mm
Fw
- mm
Ew
95 mm
Basic load ratings : Cr
109 kN
Basic load ratings : C0r
93.4 kN
Fatigue load limit : Cu
11.7 kN
Limiting speeds(Grease lub.)
5600 min-1
Limiting speeds(Oil lub.)
7500 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
59 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
101 mm
Db(min.)
98 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
1.13 kg
