Koyo N313
(BRAND)：KOYO
(Availability)：In Stock
Specifications

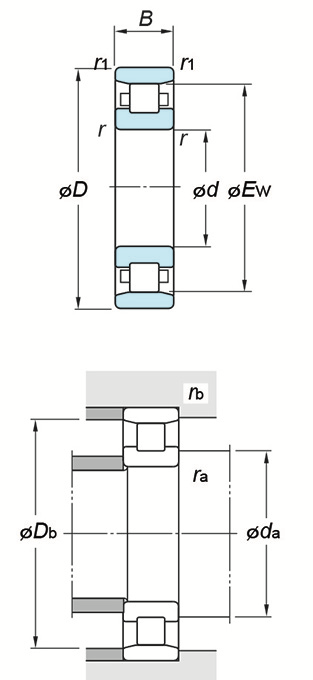

(Boundary dimensions ...etc)
d
65 mm
D
140 mm
B
33 mm
r(min.)
2.1 mm
r1(min.)
2.1 mm
Fw
- mm
Ew
121.5 mm
Basic load ratings : Cr
169 kN
Basic load ratings : C0r
139 kN
Fatigue load limit : Cu
19.2 kN
Limiting speeds(Grease lub.)
4300 min-1
Limiting speeds(Oil lub.)
5800 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
76 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
129 mm
Db(min.)
125 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
2.21 kg
