Koyo N316
(BRAND)：KOYO
(Availability)：In Stock
Specifications

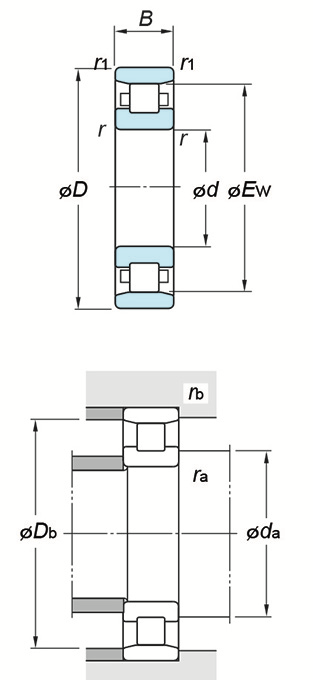

(Boundary dimensions ...etc)
d
80 mm
D
170 mm
B
39 mm
r(min.)
2.1 mm
r1(min.)
2.1 mm
Fw
- mm
Ew
147 mm
Basic load ratings : Cr
238 kN
Basic load ratings : C0r
207 kN
Fatigue load limit : Cu
30.7 kN
Limiting speeds(Grease lub.)
3500 min-1
Limiting speeds(Oil lub.)
4700 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
91 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
159 mm
Db(min.)
151 mm
ra(max.)
2 mm
rb(max.)
2 mm
Refer.
(Refer.)Mass
3.83 kg
