Koyo N319
(BRAND)：KOYO
(Availability)：In Stock
Specifications

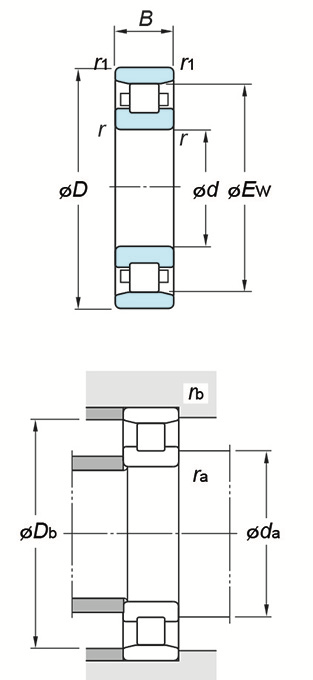

(Boundary dimensions ...etc)
d
95 mm
D
200 mm
B
45 mm
r(min.)
3 mm
r1(min.)
3 mm
Fw
- mm
Ew
173.5 mm
Basic load ratings : Cr
323 kN
Basic load ratings : C0r
311 kN
Fatigue load limit : Cu
41.3 kN
Limiting speeds(Grease lub.)
3000 min-1
Limiting speeds(Oil lub.)
4000 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
108 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
187 mm
Db(min.)
178 mm
ra(max.)
2.5 mm
rb(max.)
2.5 mm
Refer.
(Refer.)Mass
6.10 kg
