Koyo N326
(BRAND)：KOYO
(Availability)：In Stock
Specifications

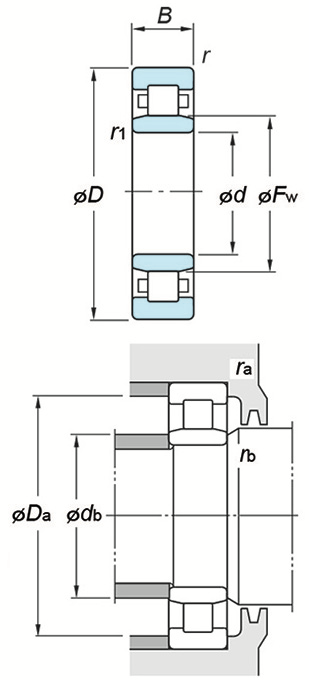

(Boundary dimensions ...etc)
d
130 mm
D
280 mm
B
58 mm
r(min.)
4 mm
r1(min.)
4 mm
Fw
mm
Ew
- mm
Basic load ratings : Cr
699 kN
Basic load ratings : C0r
667 kN
Fatigue load limit : Cu
85.7 kN
Limiting speeds(Grease lub.)
2100 min-1
Limiting speeds(Oil lub.)
2700 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
- mm
db(min.)
mm
db(max.)
mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
264 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
kg
