Koyo N406
(BRAND)：KOYO
(Availability)：In Stock
Specifications

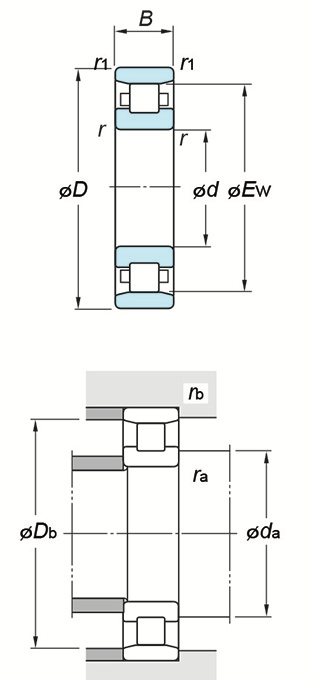

(Boundary dimensions ...etc)
d
30 mm
D
90 mm
B
23 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Fw
- mm
Ew
73 mm
Basic load ratings : Cr
78.3 kN
Basic load ratings : C0r
55.0 kN
Fatigue load limit : Cu
7.95 kN
Limiting speeds(Grease lub.)
7600 min-1
Limiting speeds(Oil lub.)
10000 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
38 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
82 mm
Db(min.)
74 mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
0.745 kg
