Koyo N417
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

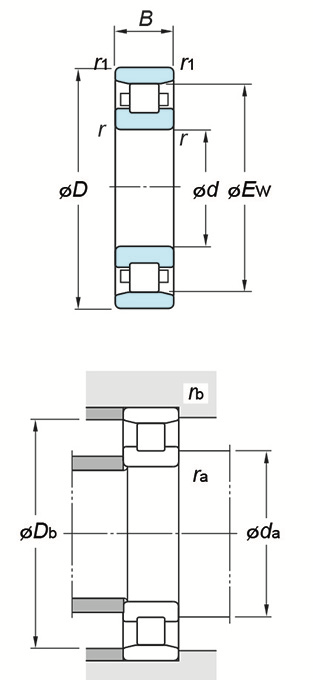

(Boundary dimensions ...etc)
d
85 mm
D
210 mm
B
52 mm
r(min.)
4 mm
r1(min.)
4 mm
Fw
- mm
Ew
177 mm
Basic load ratings : Cr
416 kN
Basic load ratings : C0r
350 kN
Fatigue load limit : Cu
49.7 kN
Limiting speeds(Grease lub.)
3000 min-1
Limiting speeds(Oil lub.)
4000 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
101 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
194 mm
Db(min.)
179 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
8.41 kg
