Koyo N420
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

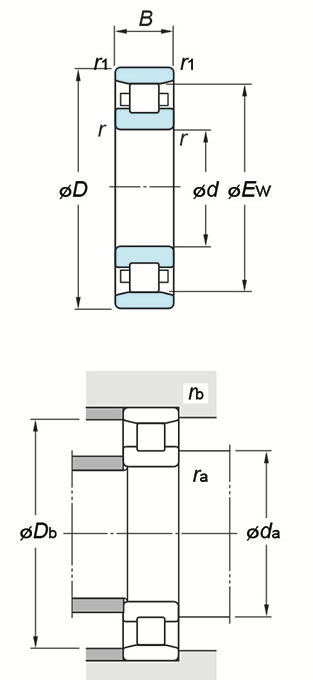

(Boundary dimensions ...etc)
d
100 mm
D
250 mm
B
58 mm
r(min.)
4 mm
r1(min.)
4 mm
Fw
- mm
Ew
211 mm
Basic load ratings : Cr
560 kN
Basic load ratings : C0r
498 kN
Fatigue load limit : Cu
67.3 kN
Limiting speeds(Grease lub.)
2500 min-1
Limiting speeds(Oil lub.)
3300 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
116 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
234 mm
Db(min.)
213 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
13.8 kg
