Koyo N422
(BRAND)：KOYO
(Availability)：In Stock
Specifications

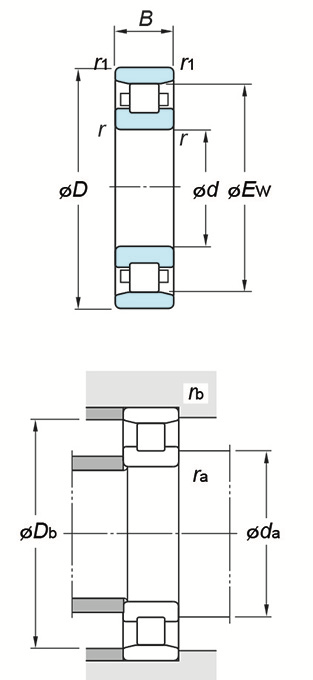

(Boundary dimensions ...etc)
d
110 mm
D
280 mm
B
65 mm
r(min.)
4 mm
r1(min.)
4 mm
Fw
- mm
Ew
235 mm
Basic load ratings : Cr
685 kN
Basic load ratings : C0r
621 kN
Fatigue load limit : Cu
80.8 kN
Limiting speeds(Grease lub.)
2200 min-1
Limiting speeds(Oil lub.)
2900 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
126 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
264 mm
Db(min.)
237 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
19.6 kg
