Koyo NAXK10Z
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

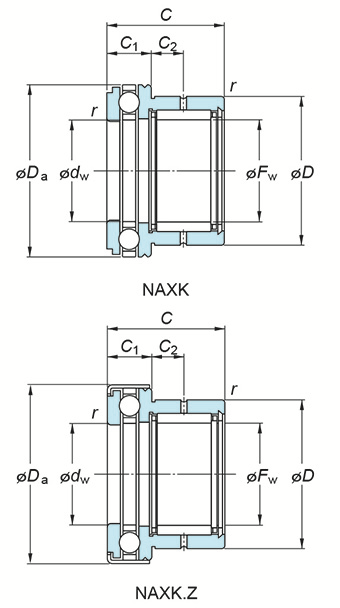

(Boundary dimensions ...etc)
Fw
10 mm
D
19 mm
C
23 mm
dw(E7)
10 mm
Da
25 mm
C1
9 mm
C2
6.5 mm
r(min.)
0.3 mm
Limiting speeds(Oil lub.)
9500 min-1
Basic load ratings : Cr
7.9 kN
Basic load ratings : C0r
8.7 kN
Basic load ratings Ca
10.4 kN
Basic load ratings C0a
14 kN
Fatigue load limit : Cu(Radial)
1.35 kN
Fatigue load limit : Cu(Thrust)
0.630 kN
Used with inner ring No.
JR7x10x16
Mounting dimensions
Refer.
(Refer.)Mass
0.04 kg
