Koyo NAXK15Z
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

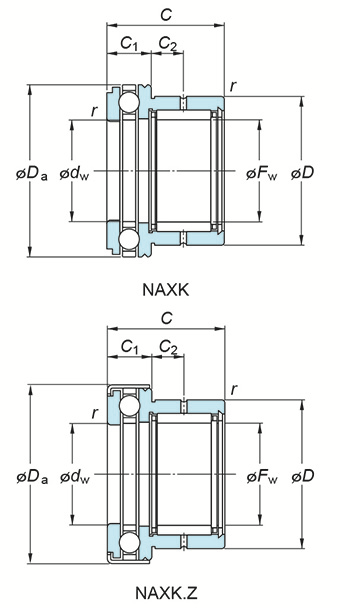

(Boundary dimensions ...etc)
Fw
15 mm
D
24 mm
C
23 mm
dw(E7)
15 mm
Da
29 mm
C1
9 mm
C2
6.5 mm
r(min.)
0.3 mm
Limiting speeds(Oil lub.)
8500 min-1
Basic load ratings : Cr
9.7 kN
Basic load ratings : C0r
12.6 kN
Basic load ratings Ca
10.9 kN
Basic load ratings C0a
16.8 kN
Fatigue load limit : Cu(Radial)
1.90 kN
Fatigue load limit : Cu(Thrust)
0.760 kN
Used with inner ring No.
JR12x15x16
Mounting dimensions
Refer.
(Refer.)Mass
0.05 kg
