Koyo NAXK17
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

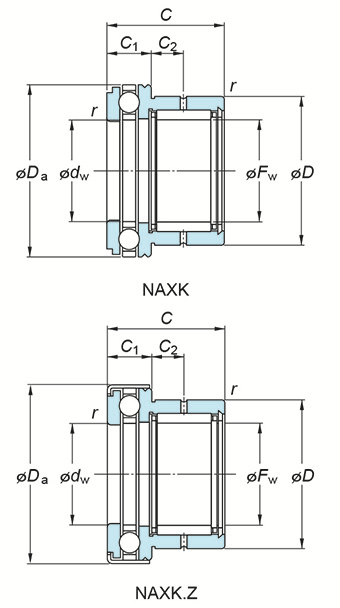

(Boundary dimensions ...etc)
Fw
17 mm
D
26 mm
C
25 mm
dw(E7)
17 mm
Da
30 mm
C1
9 mm
C2
8 mm
r(min.)
0.3 mm
Limiting speeds(Oil lub.)
8500 min-1
Basic load ratings : Cr
11.4 kN
Basic load ratings : C0r
16.1 kN
Basic load ratings Ca
11.8 kN
Basic load ratings C0a
19.6 kN
Fatigue load limit : Cu(Radial)
2.50 kN
Fatigue load limit : Cu(Thrust)
0.880 kN
Used with inner ring No.
JR14x17x17
Mounting dimensions
Refer.
(Refer.)Mass
0.06 kg
