Koyo NAXK35Z
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

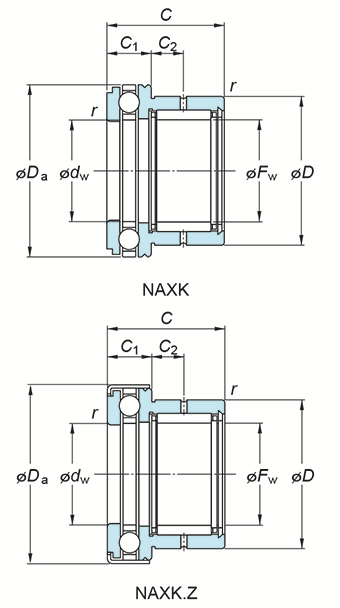

(Boundary dimensions ...etc)
Fw
35 mm
D
47 mm
C
30 mm
dw(E7)
35 mm
Da
53 mm
C1
12 mm
C2
9 mm
r(min.)
0.6 mm
Limiting speeds(Oil lub.)
5300 min-1
Basic load ratings : Cr
22.1 kN
Basic load ratings : C0r
40.8 kN
Basic load ratings Ca
20.8 kN
Basic load ratings C0a
46.6 kN
Fatigue load limit : Cu(Radial)
6.35 kN
Fatigue load limit : Cu(Thrust)
2.10 kN
Used with inner ring No.
JR30x35x20
Mounting dimensions
Refer.
(Refer.)Mass
0.184 kg
