Koyo NAXK70
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

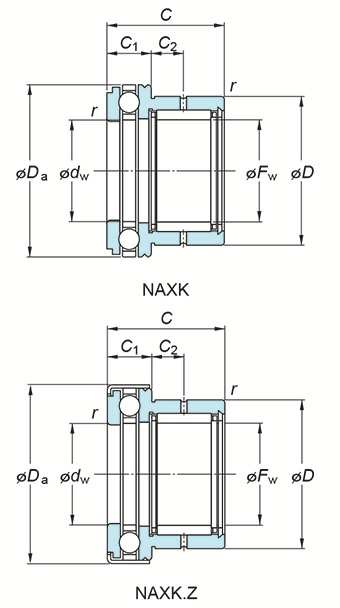

(Boundary dimensions ...etc)
Fw
70 mm
D
85 mm
C
40 mm
dw(E7)
70 mm
Da
95 mm
C1
18 mm
C2
11 mm
r(min.)
1 mm
Limiting speeds(Oil lub.)
3400 min-1
Basic load ratings : Cr
43.6 kN
Basic load ratings : C0r
87.9 kN
Basic load ratings Ca
41.6 kN
Basic load ratings C0a
110 kN
Fatigue load limit : Cu(Radial)
13.9 kN
Fatigue load limit : Cu(Thrust)
4.95 kN
Used with inner ring No.
JR60x70x25
Mounting dimensions
Refer.
(Refer.)Mass
0.659 kg
