Koyo NAXR20TN
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

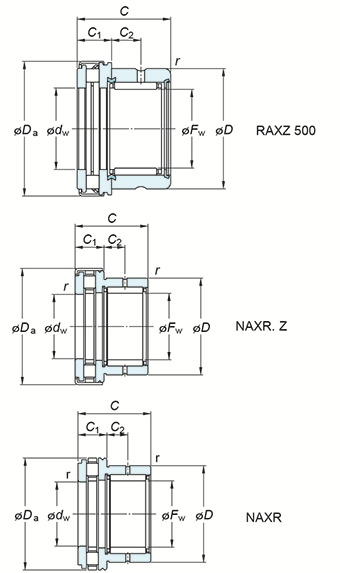

(Boundary dimensions ...etc)
Fw
20 mm
D
30 mm
C
30 mm
dw(E7)
20 mm
Da
35 mm
C1
10 mm
C2
10.5 mm
r(min.)
0.3 mm
Limiting speeds(Oil lub.)
9500 min-1
Basic load ratings : Cr
14.8 kN
Basic load ratings : C0r
23.7 kN
Basic load ratings Ca
23.6 kN
Basic load ratings C0a
56.8 kN
Fatigue load limit : Cu(Radial)
4.00 kN
Fatigue load limit : Cu(Thrust)
8.00 kN
Used with inner ring No.
JR17x20x20
Mounting dimensions
Refer.
(Refer.)Mass
0.090 kg
