Koyo NAXR25TN
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

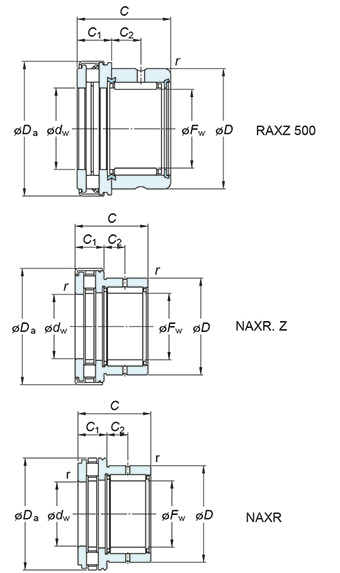

(Boundary dimensions ...etc)
Fw
25 mm
D
37 mm
C
30 mm
dw(E7)
25 mm
Da
42 mm
C1
11 mm
C2
9.5 mm
r(min.)
0.6 mm
Limiting speeds(Oil lub.)
8000 min-1
Basic load ratings : Cr
18.8 kN
Basic load ratings : C0r
29.8 kN
Basic load ratings Ca
31.2 kN
Basic load ratings C0a
81.0 kN
Fatigue load limit : Cu(Radial)
4.80 kN
Fatigue load limit : Cu(Thrust)
11.4 kN
Used with inner ring No.
JR20x25x20
Mounting dimensions
Refer.
(Refer.)Mass
0.146 kg
