Koyo NAXR40.Z
(BRAND)：KOYO
(Availability)：In Stock
Specifications

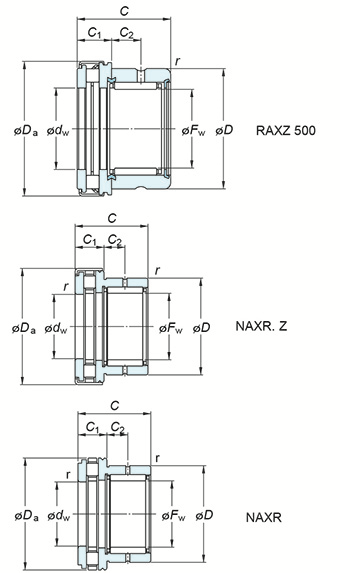

(Boundary dimensions ...etc)
Fw
40 mm
D
52 mm
C
32 mm
dw(E7)
40 mm
Da
61 mm
C1
13 mm
C2
10.0 mm
r(min.)
0.6 mm
Limiting speeds(Oil lub.)
5300 min-1
Basic load ratings : Cr
23.8 kN
Basic load ratings : C0r
47.0 kN
Basic load ratings Ca
44.5 kN
Basic load ratings C0a
126.0 kN
Fatigue load limit : Cu(Radial)
8.05 kN
Fatigue load limit : Cu(Thrust)
12.0 kN
Used with inner ring No.
JR35x40x20
Mounting dimensions
Refer.
(Refer.)Mass
0.299 kg
