Koyo NAXR45Z.TN
(BRAND)：KOYO
(Availability)：In Stock
Specifications

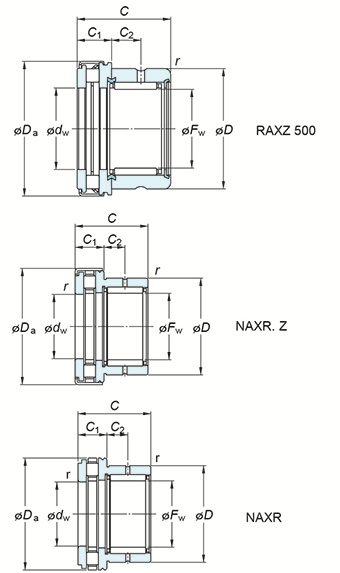

(Boundary dimensions ...etc)
Fw
45 mm
D
58 mm
C
32 mm
dw(E7)
45 mm
Da
66 mm
C1
14 mm
C2
9.0 mm
r(min.)
0.6 mm
Limiting speeds(Oil lub.)
4800 min-1
Basic load ratings : Cr
24.9 kN
Basic load ratings : C0r
51.8 kN
Basic load ratings Ca
47.0 kN
Basic load ratings C0a
140.0 kN
Fatigue load limit : Cu(Radial)
9.00 kN
Fatigue load limit : Cu(Thrust)
15.5 kN
Used with inner ring No.
JR40x45x20
Mounting dimensions
Refer.
(Refer.)Mass
0.370 kg
