Koyo NAXR50.Z
(BRAND)：KOYO
(Availability)：In Stock
Specifications

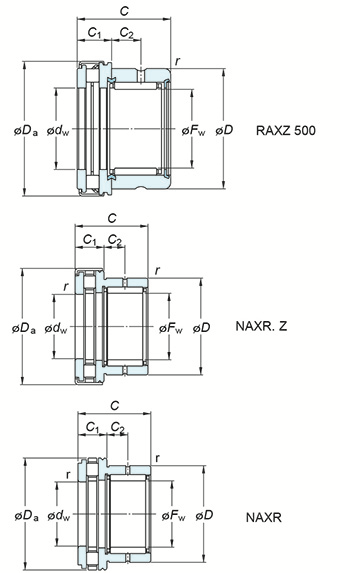

(Boundary dimensions ...etc)
Fw
50 mm
D
62 mm
C
35 mm
dw(E7)
50 mm
Da
71 mm
C1
14 mm
C2
10.0 mm
r(min.)
0.6 mm
Limiting speeds(Oil lub.)
4300 min-1
Basic load ratings : Cr
30.2 kN
Basic load ratings : C0r
68.5 kN
Basic load ratings Ca
49.7 kN
Basic load ratings C0a
155.0 kN
Fatigue load limit : Cu(Radial)
12.5 kN
Fatigue load limit : Cu(Thrust)
14.8 kN
Used with inner ring No.
JR45x50x25
Mounting dimensions
Refer.
(Refer.)Mass
0.452 kg
