Koyo NF330
(BRAND)：KOYO
(Availability)：In Stock
Specifications

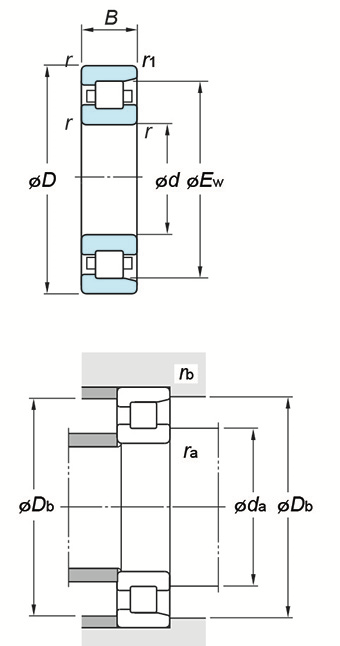

(Boundary dimensions ...etc)
d
150 mm
D
320 mm
B
65 mm
r(min.)
4 mm
r1(min.)
4 mm
Fw
- mm
Ew
277 mm
Basic load ratings : Cr
829 kN
Basic load ratings : C0r
807 kN
Fatigue load limit : Cu
99.1 kN
Limiting speeds(Grease lub.)
1800 min-1
Limiting speeds(Oil lub.)
2300 min-1
sd1
- mm
B1
- mm
B2
- mm
Mounting dimensions
da(min.)
166 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
- mm
Db(max.)
304 mm
Db(min.)
281 mm
ra(max.)
3 mm
rb(max.)
3 mm
Refer.
(Refer.)Mass
27.9 kg
