Koyo NH2205R
(BRAND)：KOYO
(Availability)：In Stock
Specifications

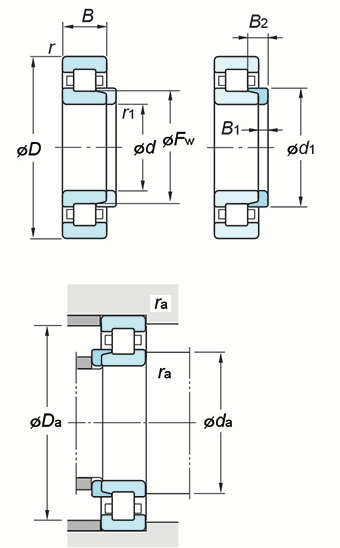

(Boundary dimensions ...etc)
d
25 mm
D
52 mm
B
18 mm
r(min.)
1 mm
r1(min.)
0.6 mm
Fw
31.5 mm
Ew
- mm
Basic load ratings : Cr
43.6 kN
Basic load ratings : C0r
34.6 kN
Fatigue load limit : Cu
4.40 kN
Limiting speeds(Grease lub.)
12000 min-1
Limiting speeds(Oil lub.)
15000 min-1
sd1
34.8 mm
B1
3 mm
B2
6.5 mm
Mounting dimensions
da(min.)
30 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
47 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1 mm
rb(max.)
0.6 mm
Refer.
(Refer.)Mass
0.183 kg
