Koyo NH2211
(BRAND)：KOYO
(Availability)：In Stock
Specifications

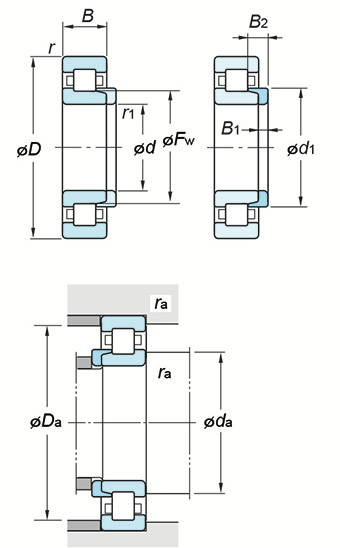

(Boundary dimensions ...etc)
d
55 mm
D
100 mm
B
25 mm
r(min.)
1.5 mm
r1(min.)
1.1 mm
Fw
66.5 mm
Ew
- mm
Basic load ratings : Cr
94.2 kN
Basic load ratings : C0r
87.2 kN
Fatigue load limit : Cu
11.6 kN
Limiting speeds(Grease lub.)
5800 min-1
Limiting speeds(Oil lub.)
7700 min-1
sd1
70.8 mm
B1
6 mm
B2
11 mm
Mounting dimensions
da(min.)
63 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
92 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1.5 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
0.884 kg
