Koyo NH2212
(BRAND)：KOYO
(Availability)：In Stock
Specifications

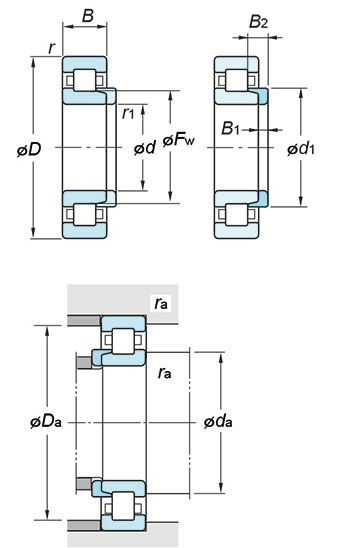

(Boundary dimensions ...etc)
d
60 mm
D
110 mm
B
28 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Fw
73.5 mm
Ew
- mm
Basic load ratings : Cr
120 kN
Basic load ratings : C0r
123 kN
Fatigue load limit : Cu
15.3 kN
Limiting speeds(Grease lub.)
5200 min-1
Limiting speeds(Oil lub.)
7000 min-1
sd1
78.4 mm
B1
6 mm
B2
11 mm
Mounting dimensions
da(min.)
68 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
102 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
1.208 kg
