Koyo NH2213
(BRAND)：KOYO
(Availability)：In Stock
Specifications

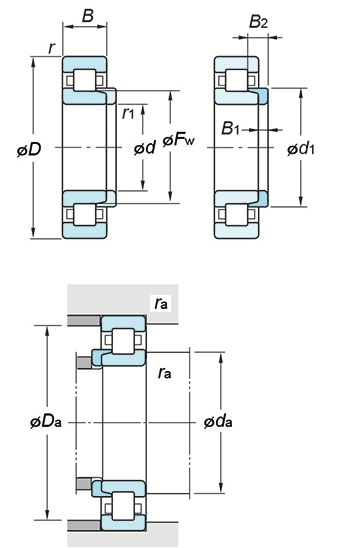

(Boundary dimensions ...etc)
d
65 mm
D
120 mm
B
31 mm
r(min.)
1.5 mm
r1(min.)
1.5 mm
Fw
79.6 mm
Ew
- mm
Basic load ratings : Cr
150 kN
Basic load ratings : C0r
149 kN
Fatigue load limit : Cu
20.6 kN
Limiting speeds(Grease lub.)
4800 min-1
Limiting speeds(Oil lub.)
6400 min-1
sd1
84.8 mm
B1
6 mm
B2
11.5 mm
Mounting dimensions
da(min.)
73 mm
db(min.)
- mm
db(max.)
- mm
dc(min.)
- mm
dd(min.)
- mm
Da(max.)
112 mm
Db(max.)
- mm
Db(min.)
- mm
ra(max.)
1.5 mm
rb(max.)
1.5 mm
Refer.
(Refer.)Mass
1.573 kg
