Koyo NN3005K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

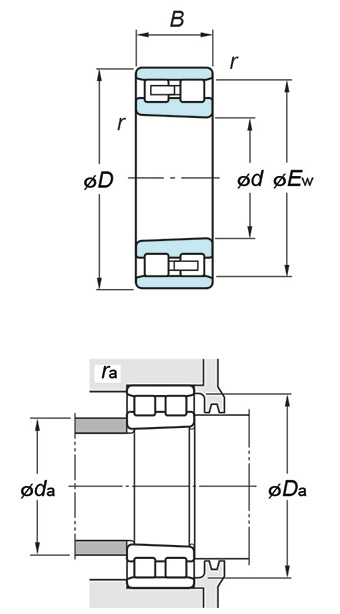

(Boundary dimensions ...etc)
d
25 mm
D
47 mm
B
16 mm
r(min.)
0.6 mm
Fw
- mm
Ew
41.3 mm
Basic load ratings : Cr
32.2 kN
Basic load ratings : C0r
30.0 kN
Fatigue load limit : Cu
5.20 kN
Limiting speeds(Grease lub.)
14000 min-1
Limiting speeds(Oil lub.)
17000 min-1
Mounting dimensions
da(min.)
29 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
43 mm
da(min.)
42 mm
ra(max.)
0.6 mm
Refer.
(Refer.)Mass
0.123 kg
