Koyo NN3007
(BRAND)：KOYO
(Availability)：In Stock
Specifications

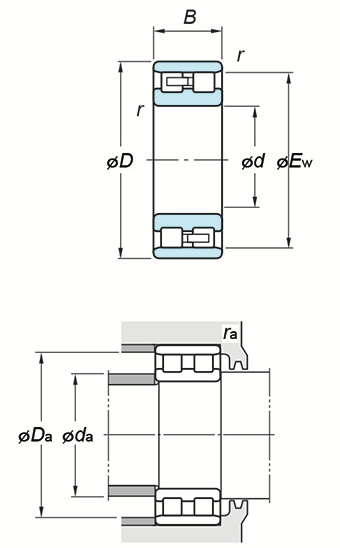

(Boundary dimensions ...etc)
d
35 mm
D
62 mm
B
20 mm
r(min.)
1 mm
Fw
- mm
Ew
55 mm
Basic load ratings : Cr
49.1 kN
Basic load ratings : C0r
50.0 kN
Fatigue load limit : Cu
5.65 kN
Limiting speeds(Grease lub.)
10000 min-1
Limiting speeds(Oil lub.)
12000 min-1
Mounting dimensions
da(min.)
40 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
57 mm
da(min.)
56 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.253 kg
