Koyo NN3008
(BRAND)：KOYO
(Availability)：In Stock
Specifications

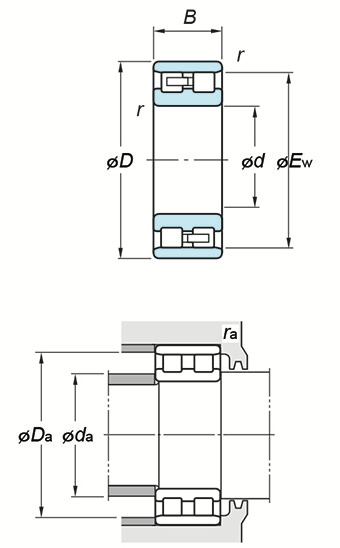

(Boundary dimensions ...etc)
d
40 mm
D
68 mm
B
21 mm
r(min.)
1 mm
Fw
- mm
Ew
61 mm
Basic load ratings : Cr
52.0 kN
Basic load ratings : C0r
55.9 kN
Fatigue load limit : Cu
6.35 kN
Limiting speeds(Grease lub.)
9100 min-1
Limiting speeds(Oil lub.)
11000 min-1
Mounting dimensions
da(min.)
45 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
63 mm
da(min.)
62 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.307 kg
