Koyo NN3009
(BRAND)：KOYO
(Availability)：In Stock
Specifications

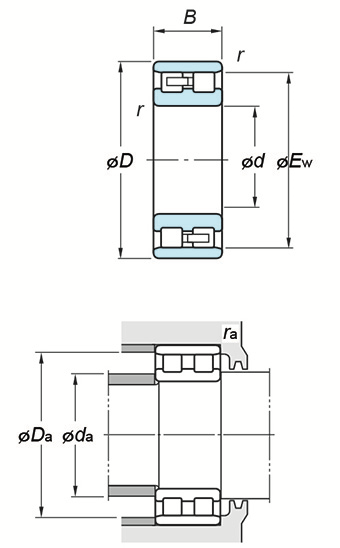

(Boundary dimensions ...etc)
d
45 mm
D
75 mm
B
23 mm
r(min.)
1 mm
Fw
- mm
Ew
67.5 mm
Basic load ratings : Cr
67.1 kN
Basic load ratings : C0r
71.9 kN
Fatigue load limit : Cu
8.75 kN
Limiting speeds(Grease lub.)
8300 min-1
Limiting speeds(Oil lub.)
9900 min-1
Mounting dimensions
da(min.)
50 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
70 mm
da(min.)
69 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.404 kg
