Koyo NN3010
(BRAND)：KOYO
(Availability)：In Stock
Specifications

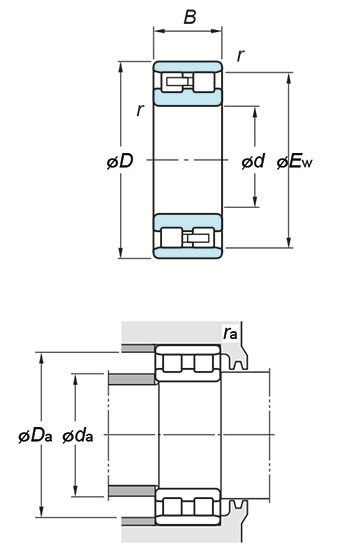

(Boundary dimensions ...etc)
d
50 mm
D
80 mm
B
23 mm
r(min.)
1 mm
Fw
- mm
Ew
72.5 mm
Basic load ratings : Cr
66.4 kN
Basic load ratings : C0r
72.6 kN
Fatigue load limit : Cu
8.85 kN
Limiting speeds(Grease lub.)
7600 min-1
Limiting speeds(Oil lub.)
9100 min-1
Mounting dimensions
da(min.)
55 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
75 mm
da(min.)
74 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.429 kg
