Koyo NN3013
(BRAND)：KOYO
(Availability)：In Stock
Specifications

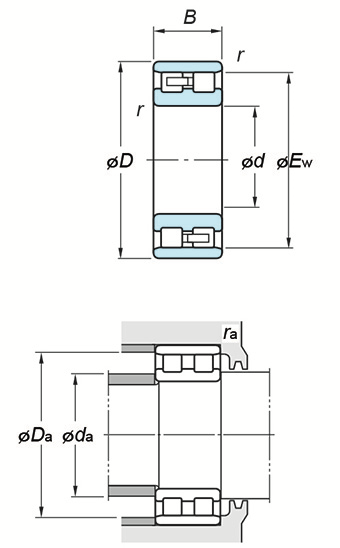

(Boundary dimensions ...etc)
d
65 mm
D
100 mm
B
26 mm
r(min.)
1.1 mm
Fw
- mm
Ew
91 mm
Basic load ratings : Cr
93.6 kN
Basic load ratings : C0r
111 kN
Fatigue load limit : Cu
14.6 kN
Limiting speeds(Grease lub.)
6000 min-1
Limiting speeds(Oil lub.)
7200 min-1
Mounting dimensions
da(min.)
71.5 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
93.5 mm
da(min.)
92 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
0.728 kg
