Koyo NN3015
(BRAND)：KOYO
(Availability)：In Stock
Specifications

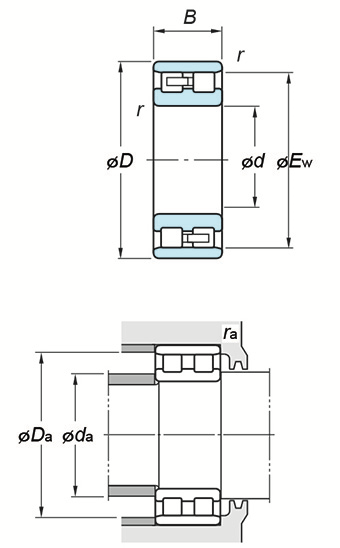

(Boundary dimensions ...etc)
d
75 mm
D
115 mm
B
30 mm
r(min.)
1.1 mm
Fw
- mm
Ew
105 mm
Basic load ratings : Cr
124 kN
Basic load ratings : C0r
155 kN
Fatigue load limit : Cu
21.5 kN
Limiting speeds(Grease lub.)
5200 min-1
Limiting speeds(Oil lub.)
6200 min-1
Mounting dimensions
da(min.)
81.5 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
108.5 mm
da(min.)
106 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
1.11 kg
