Koyo NN3017K
(BRAND)：KOYO
(Availability)：In Stock
Specifications

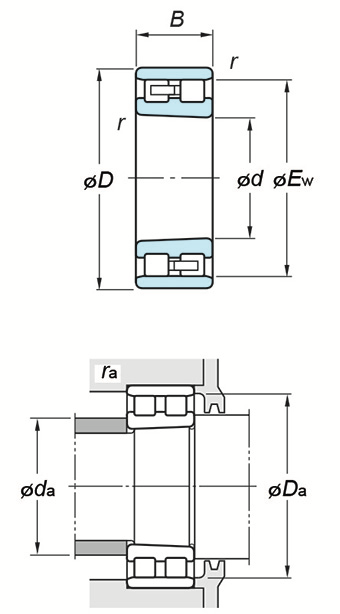

(Boundary dimensions ...etc)
d
85 mm
D
130 mm
B
34 mm
r(min.)
1.1 mm
Fw
- mm
Ew
118 mm
Basic load ratings : Cr
152 kN
Basic load ratings : C0r
194 kN
Fatigue load limit : Cu
27.3 kN
Limiting speeds(Grease lub.)
4600 min-1
Limiting speeds(Oil lub.)
5500 min-1
Mounting dimensions
da(min.)
91.5 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
123.5 mm
da(min.)
119 mm
ra(max.)
1 mm
Refer.
(Refer.)Mass
1.58 kg
