Koyo NN3018K
(BRAND)：KOYO
(Availability)：In Stock

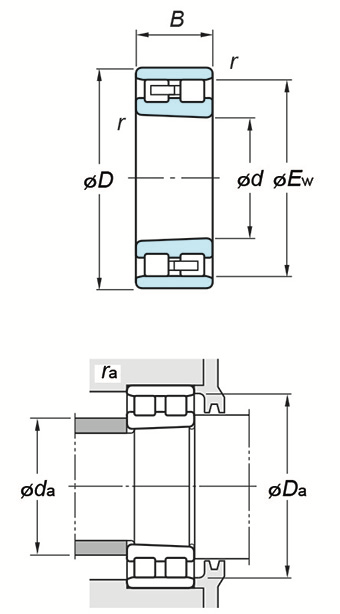

Specifications
(Boundary dimensions ...etc)
d
90 mm
D
140 mm
B
37 mm
r(min.)
1.5 mm
Fw
- mm
Ew
127 mm
Basic load ratings : Cr
179 kN
Basic load ratings : C0r
228 kN
Fatigue load limit : Cu
29.3 kN
Limiting speeds(Grease lub.)
4200 min-1
Limiting speeds(Oil lub.)
5100 min-1
Mounting dimensions
da(min.)
98 mm
da(max.)
- mm
db(min.)
- mm
Da(max.)
132 mm
da(min.)
129 mm
ra(max.)
1.5 mm
Refer.
(Refer.)Mass
2.01 kg
